permanent gondola system

what is a permanent gondola system?

A Permanent Gondola System is a planned installation during construction stage and is used primarily for maintenance, window cleaning and inspection in the long term.

The following are some of the Permanent Gondola Systems available:

  • Davits  Arm System
  • Direct Anchor System
DAVITS ARM SYSTEM

Slab Mounted Pipe Sleeve system is used when there is no structural parapet wall

Permanent Gondola System

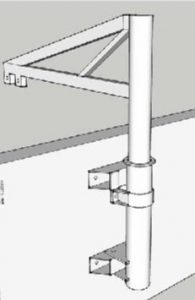

DAVITS ARM SYSTEM

Steel Mounted Pipe Sleeve System is used when the permanent brackets are attached onto structural steel elements instead of reinforced concrete elements.

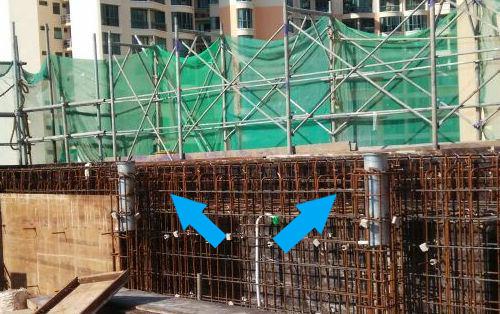

Cast in stump
DAVITS ARM SYSTEM

Hot-dipped galvanised pipe sleeve with cap & weep-hole to RC stump (photo shows before casting)

Permanent Gondola System
DAVITS ARM SYSTEM

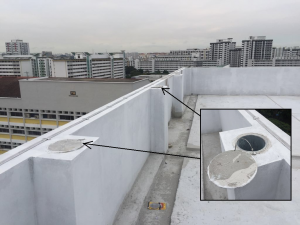

Hot-dipped galvanised pipe sleeve with cap & weep-hole to RC stump (photo shows after casting)

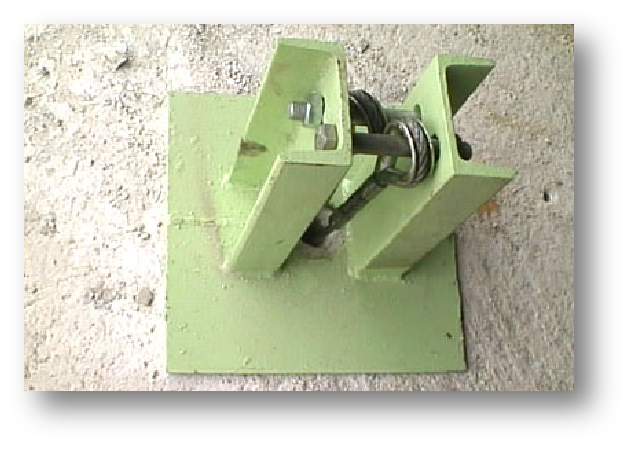

Permanent Gondola System Direct Anchor System
DROP THROUGH SYSTEM

Can be mounted either through a RC slab or at the soffit of a RC slab in order to access recessed areas below.

Permanent Gondola System Copper Tube

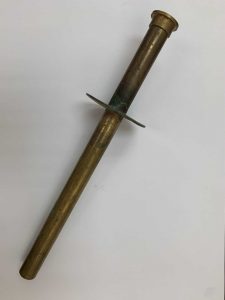

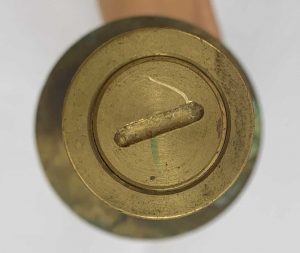

COPPER TUBE FOR DROP THROUGH SYSTEM

We sell copper tubes to be used for such Drop Through System.

Stainless Steel Tube for Permanent Gondola System

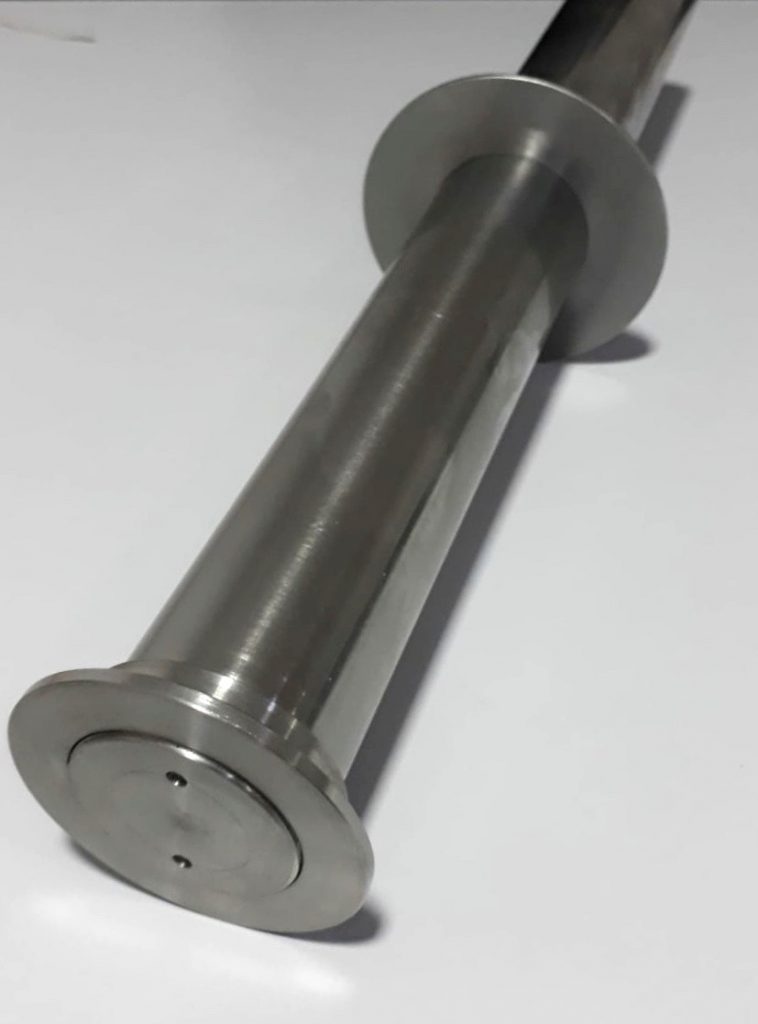

STAINLESS STEEL TUBE FOR DROP THROUGH SYSTEM

We also sell stainless steel tubes to be used for such Drop Through System.

Permanent Gondola System Pull Out Test

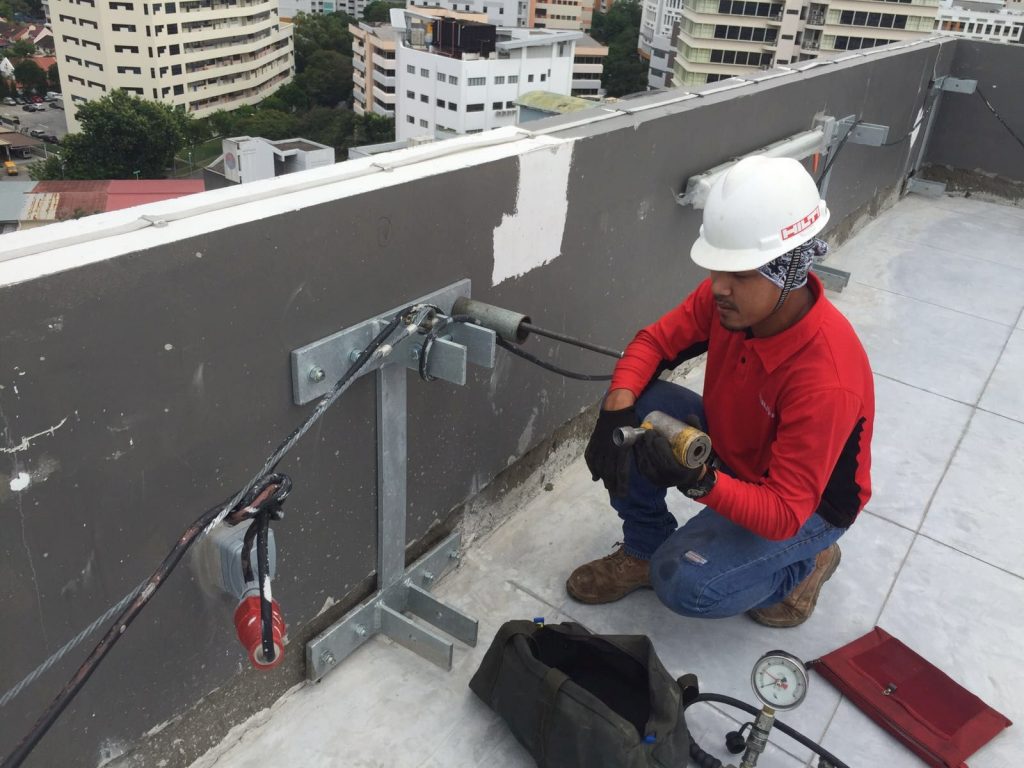

Pull-Out Test

Safety and Quality assurance

For the installation of our Permanent Gondola System, we use quality bolts approved by Housing Development Board (HDB) and Building Construction Authority (BCA).

Our Project Operations Team will be present on site for the inspection of the pull-out test to ensure compliance of all safety and technical requirements.

Permanent Gondola System Pull Out Test

Our Full Suite of Services

Designing

Endorsement

Drafting

Fabrication

Operation

Installation

Product Enquiry
